Kupava-16 16mm Film Editing Table

Kupava-16 Film Editing Table

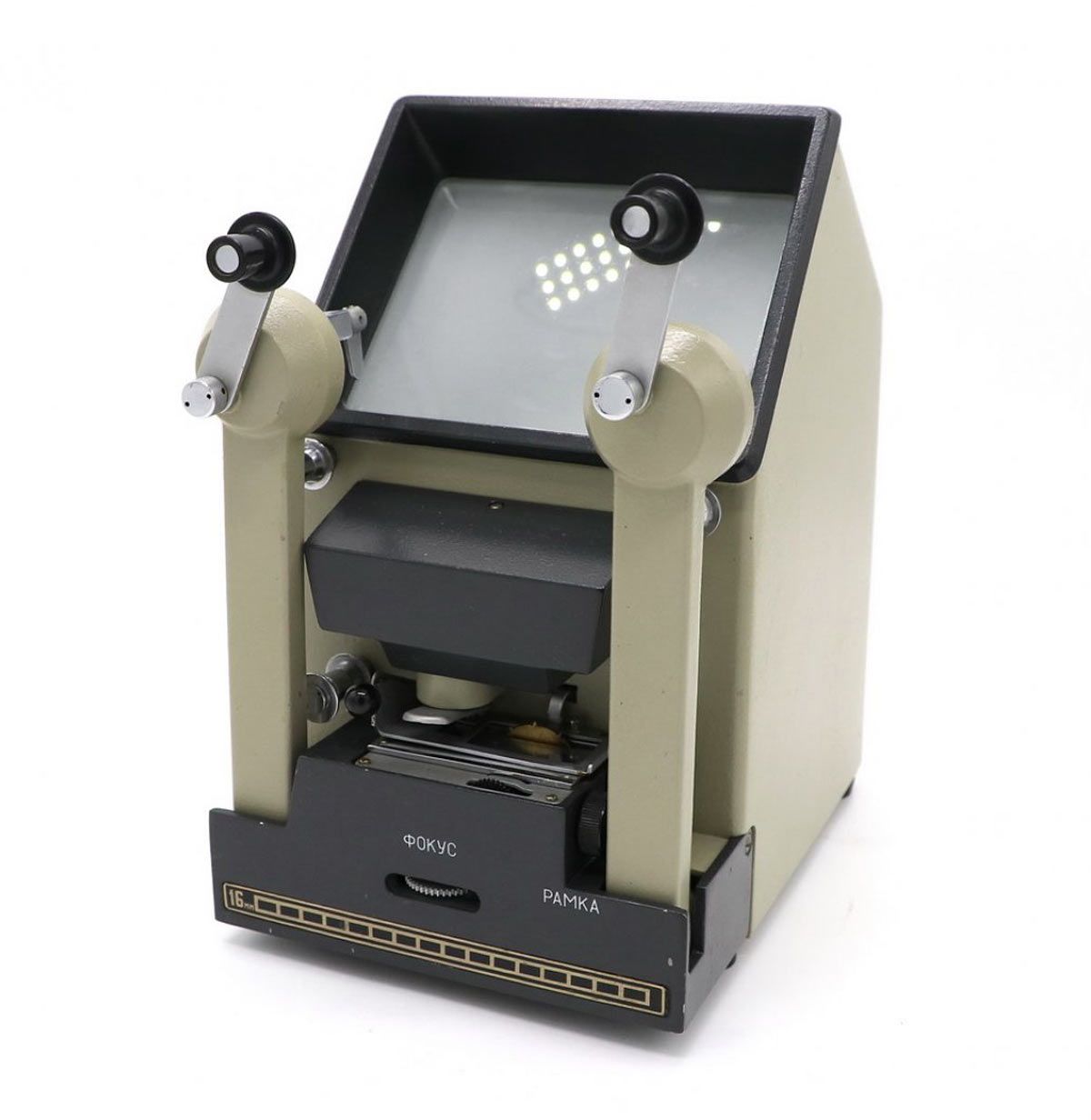

The Kupava-16 is a professional film editing table manufactured by Lytkarino Optical Glass Factory since 1970. Designed for viewing and editing 16mm films, it features a film transport mechanism and optical system that allows for both continuous playback and frame-by-frame viewing.

Technical Details

• Film format: 16mm
• Screen size: 86 x 116 mm
• Film magnification: 12.5x
• Screen brightness: 70 lux at center
• Maximum reel capacity: 120 meters
• Power: 220V AC (via transformer)
• Lamp type: RN-8-20
• Dimensions: 205 x 170 x 240 mm (with folded brackets)
• Weight: 3.3 kg

Key Features

• Daylight viewing capability
• Frame-by-frame or continuous viewing modes
• Built-in focusing adjustment
• Frame alignment capability
• Scene marking function
• Fast reverse winding

Condition

The actual condition of the editing table may differ from the one shown in the photos. While signs of use may be visible, we thoroughly test each unit to ensure all mechanical and optical systems are working properly. The viewing screen provides clear and bright image viewing as designed. Every editing table undergoes detailed inspection before shipping.
